Directional Control Valves - Series D31

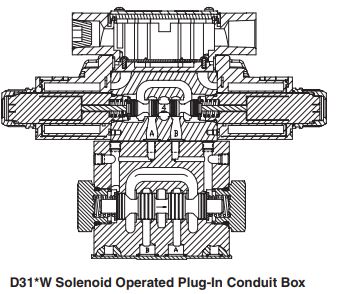

Series D31 hydraulic directional control valves are high performance, solenoid controlled, pilot operated, 2-stage, 4-way valves. They are available in 2 or 3-position styles and are manifold mounted. These valves conform to NFPA’s D05H, CETOP 5 and can also be manufactured to an NFPA DO5HE, CETOP 5H configuration.

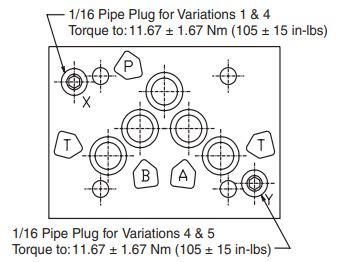

NFPA D05H, CETOP 5
NFPA DO5HE, CETOP 5H
About the D31 Series
Features:
- Easy access mounting bolts.
- 345 Bar (5000 PSI) pressure rating.
- Flows to 175 LPM (45 GPM) depending on spool.

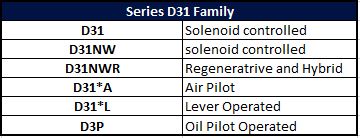

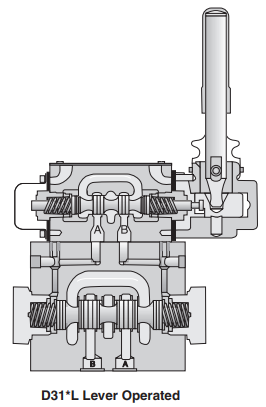

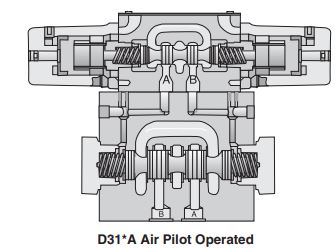

- Choice of four operator styles.
- Rugged four land spools.

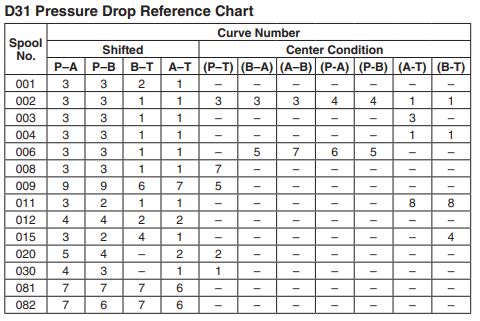

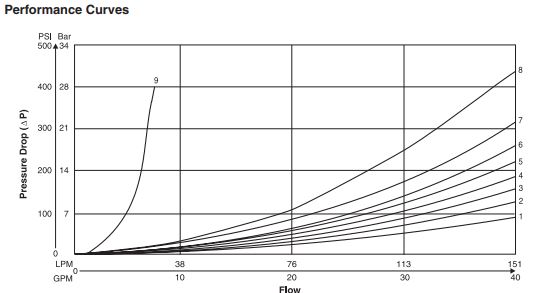

- Low pressure drop.
- Phosphate finish.
- Both NFPA and CETOP mounting styles available.
D1VW
D3W
D31VW
D41VW
D61VW
D81VW
D101VW
D111VW
