Directional Control Valves - Series D1SE
Series D1SE directional control valves are equipped with a wet pin armature solenoid, drain-free, tapered poppet valve and compatible with the standards DIN NG6, CETOP 3, and NFPA D03. Due to the 3/2 way design, port A is either connected with P or discharged in the tank. The neutral position (solenoid not activated) is taken automatically by a return spring. The proven seated type directional control valve series D1SE in size NG06 is almost leakage-free and can be used for a wide range of hydraulic applications.
Applications

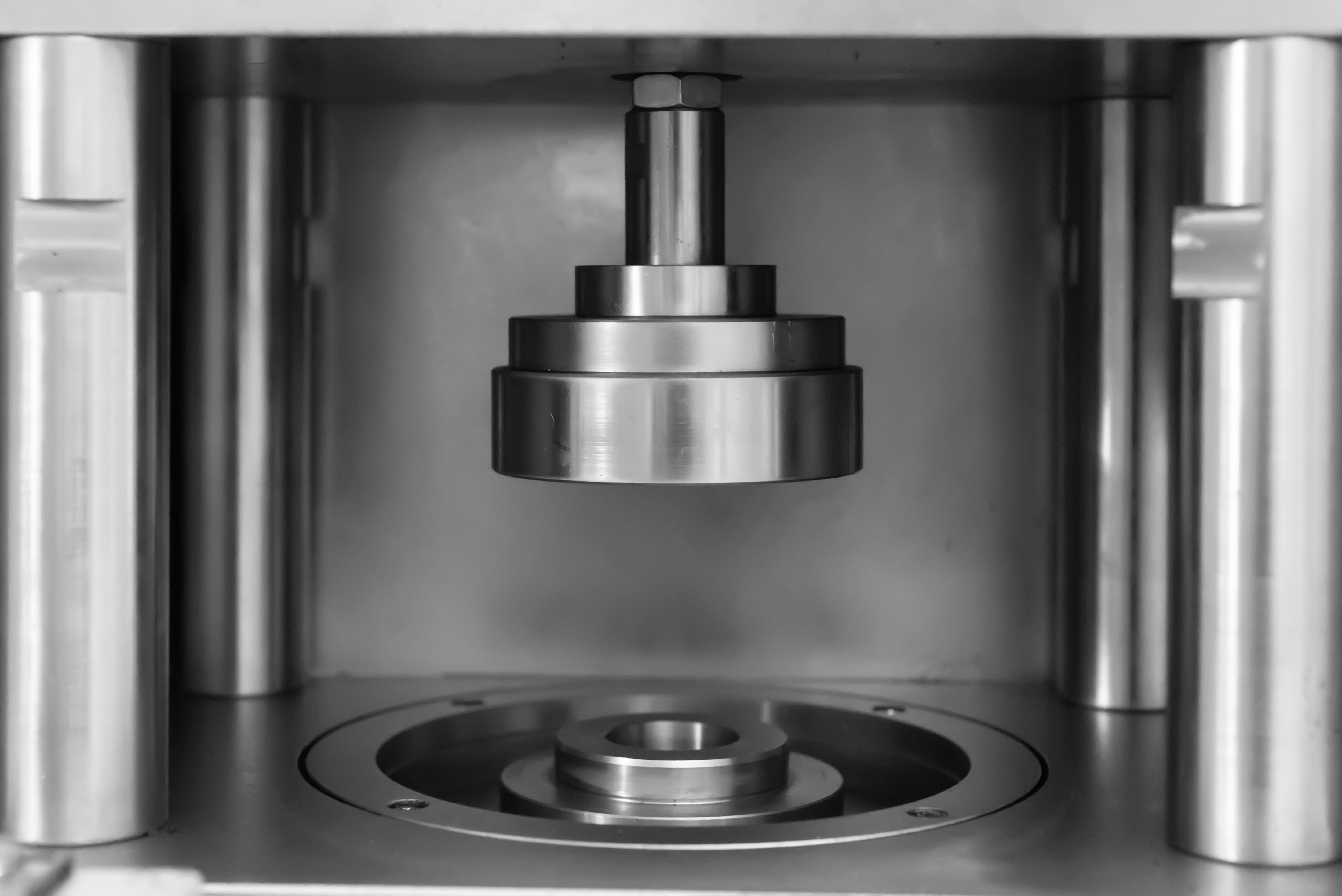

General Hydraulic Presses
Injection Molding
Why Choose the D1SE?
Key Features
- Compact, proven design that represents our long-term experience in hydraulics - increases reliability
- Robust all-steel design - important functional inner parts are hardened
- Poppet and seat are grinded - practically no leakage
- Short delivery time - no warehousing necessary
Popular Markets
- Industrial
- Machine tools
- Molding
- Rubber & tire processing
About the D1SE Series
- Low leakage poppet design

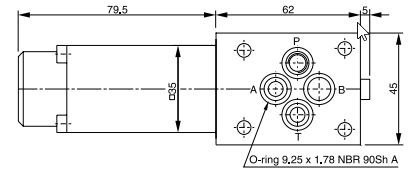

- Fits NFPA D03 mounting
- Pressure balanced
- Leakage: 3-5 DPM per seat
- Max Pressure: 350 Bar (5075 PSI)

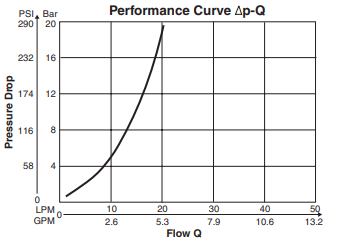

- Max Flow: 20 LPM (5.28 GPM)
