Directional Control Valves - Series D3

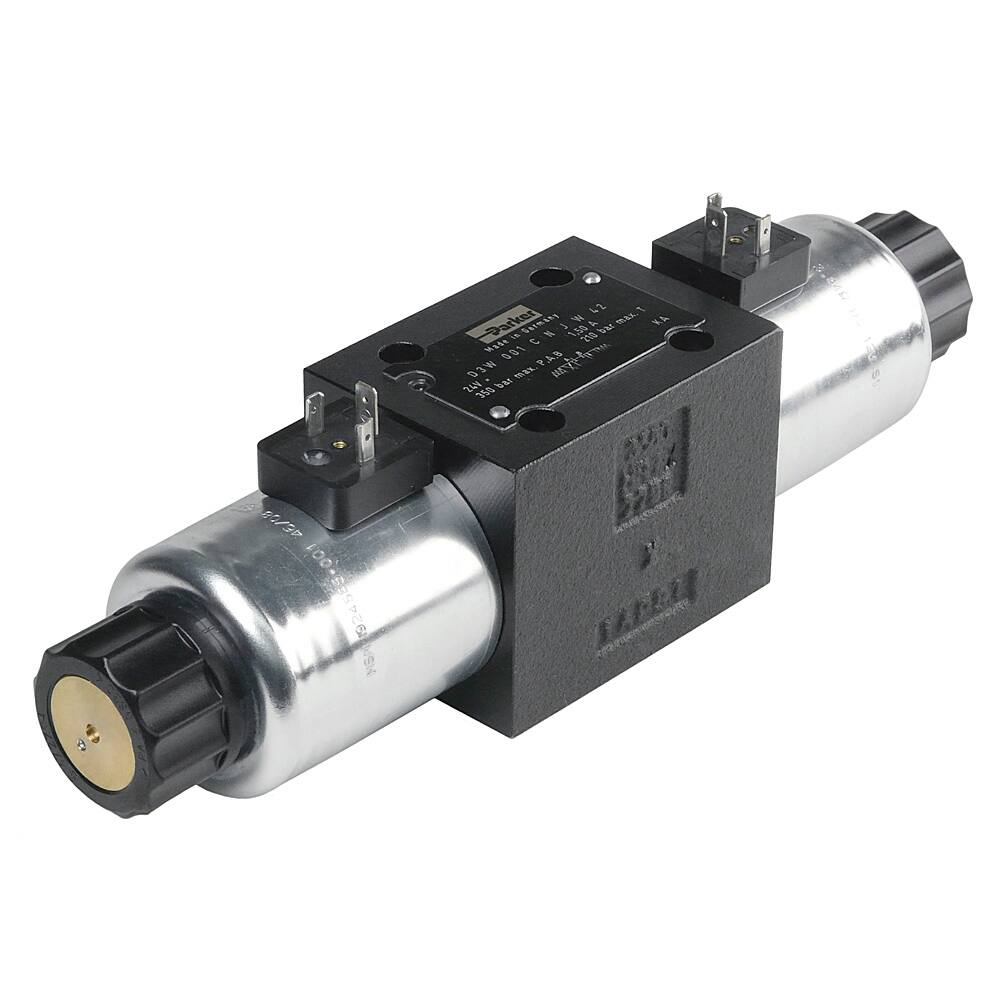

D3W*C Valve
D3W*C Valve's Schematic
Series D3 hydraulic directional control valves are high performance, direct operated 4-way valves, available in 2 or 3-position. They are manifold mounted which conform to NFPA's D05, CETOP 5, ISO NG10 mounting patterns. These valves were designed for industrial and mobile hydraulic applications which require high cycle rates, long life and high efficiency.

Why Choose the D3?

About the D3 Series

Features:
  • Easy access mounting bolts.
  • 345 Bar (5000 PSI) pressure rating.
  • Flows to 40 GPM depending on spool.
  • Choice of four operator styles.
  • Rugged four land spools.

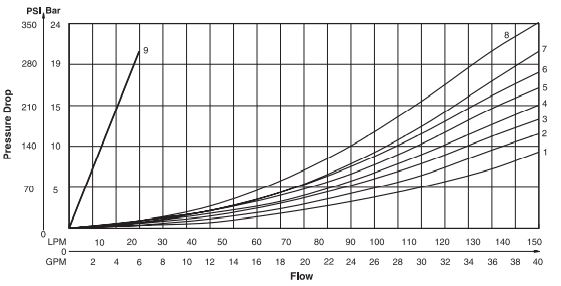

  • Low pressure drop.
  • Phosphate finish body.
  • CSA approved, and US recognized coils standard.
  • Proportional spool available.
Check out the Industrial Valve Catalog for more information:
Series D3 Subseries:
D3L
D3A
D3C

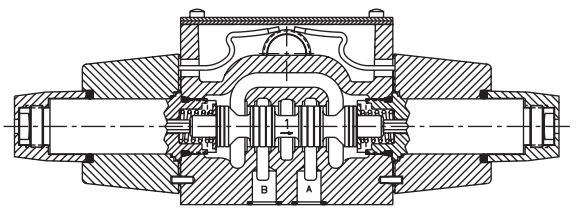

D3W Solenoid Conduit

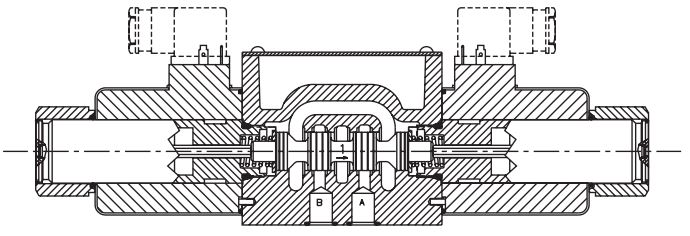

D3W Solenoid Hirschmann

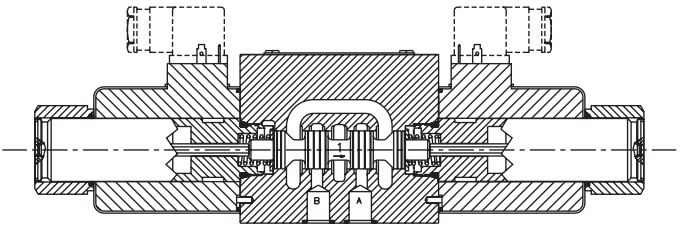

D3DW
