Directional Control Valves - Series D111

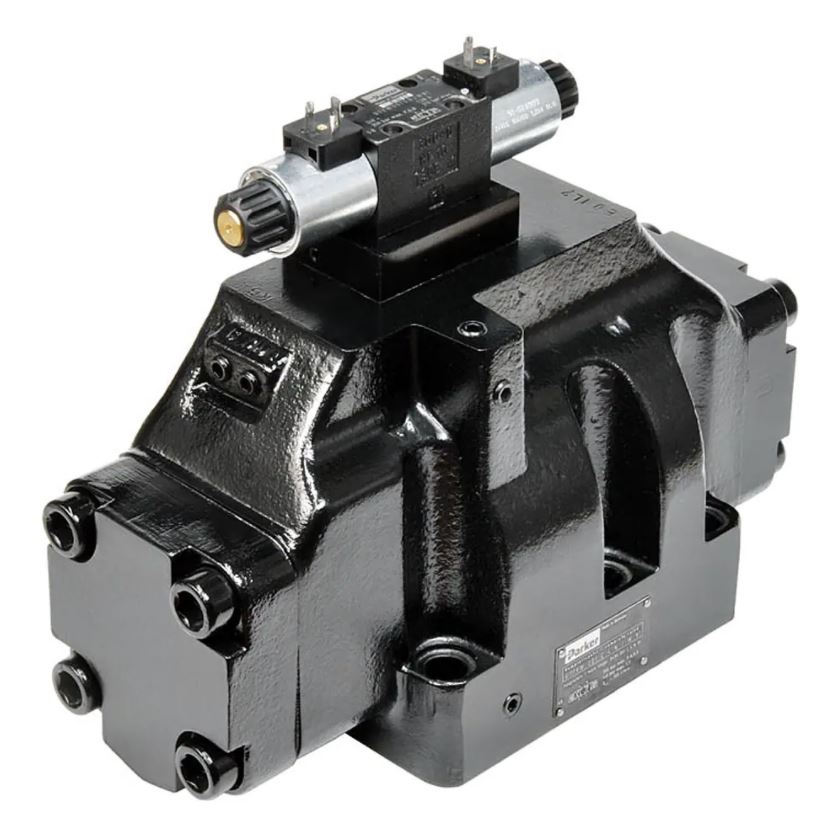

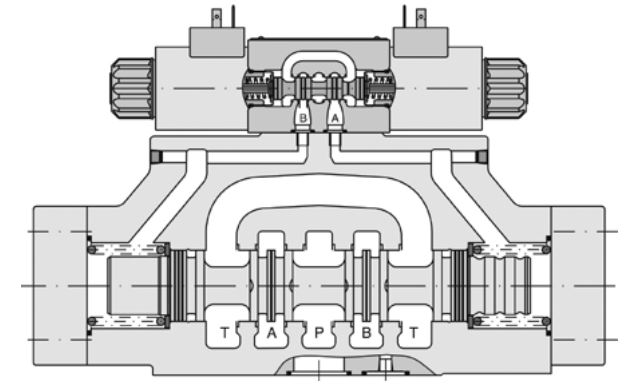

D111VW Valve

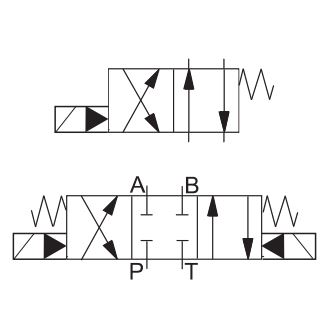

D111VW Valve's Schematic
Series D111VW valves are piloted by a D1VW valve. The valves can be ordered with position control. The minimum pilot pressure must be ensured for all operating conditions of the directional valve. Additionally, spools with a P to T connection in the deenergized position need an external pressure supply (external inlet).
Why Choose the D3?
About the D111 Series
Features

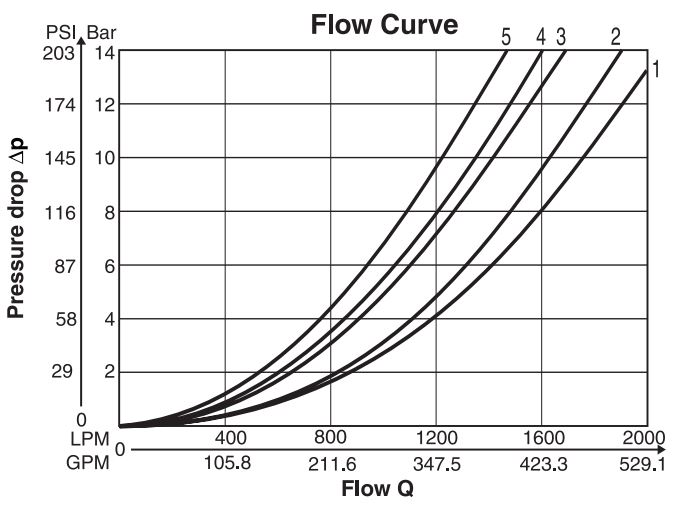

- Low pressure drop design.
- Hardened spools provide long life.
- Wide variety of voltages and electrical connection options.
- Explosion proof availability.
- No tools required for coil removal.
Series D111 Subseries
D111VW

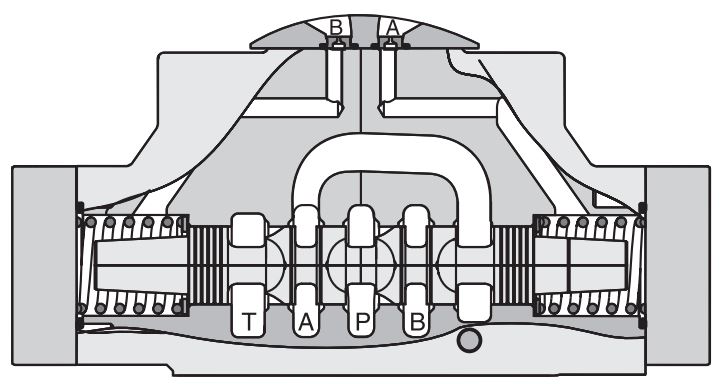

D111VWR Regenerative Valve

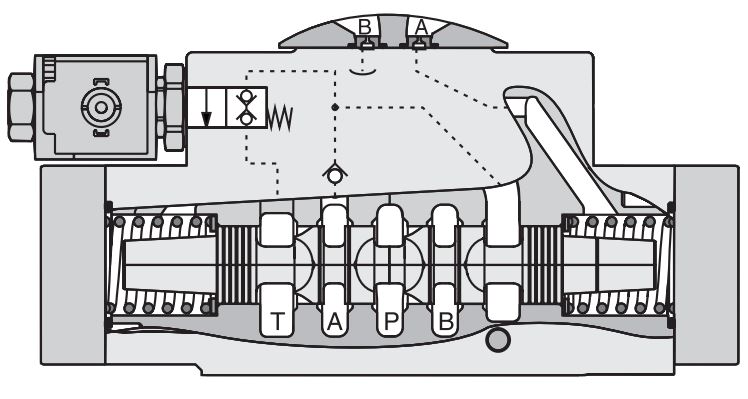

D111VWZ Hybrid Valve
D1VW
D3W
D31VW
D41VW
D61VW
D81VW
D101VW
D111VW
