Sandwich Valves - Series FM, FD, FC ZRD

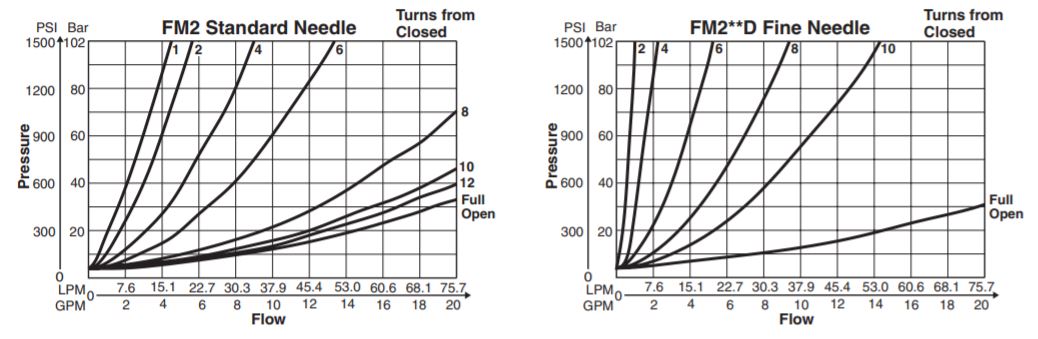

FM Series
Series FM double flow control valves permit free flow from the directional valve to the actuator and adjustable independent flow regulation in each return line from the actuator (meter-out). The FM2 and FM3 have a seal plate and can be inverted for meter-in applications (see installation drawing for flow direction).

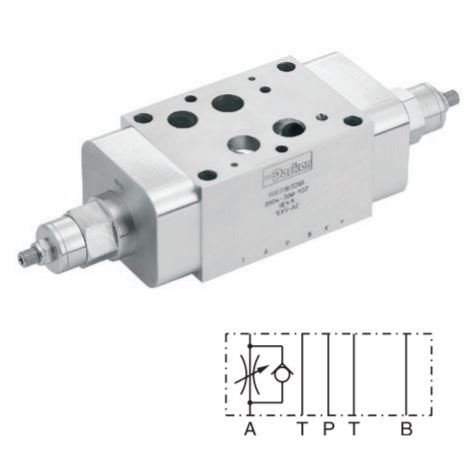

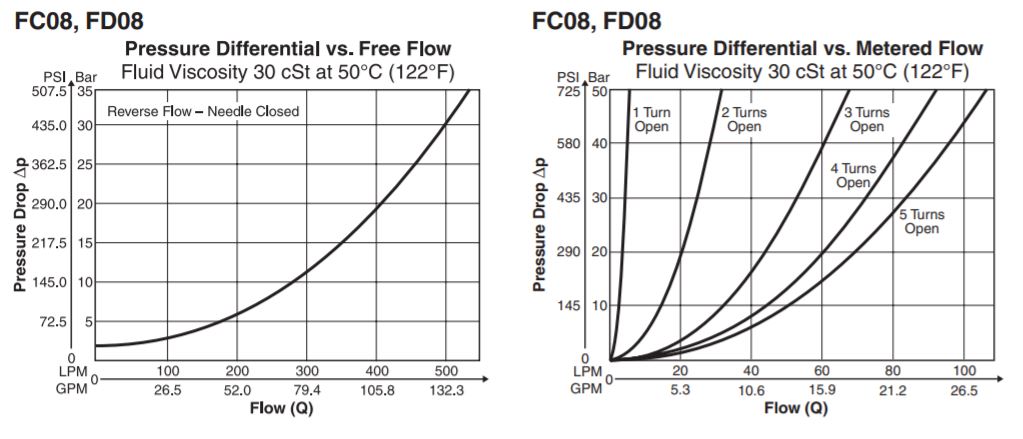

FD, FC Series

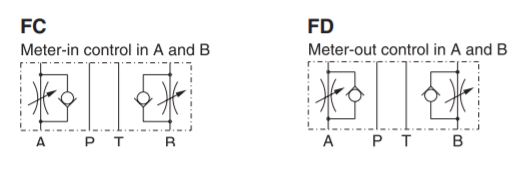

Series FC, FD throttle check valves are designed for maximum flow rates. The throttle check function is located in ports A and B. Meter-in or meter-out functionality can be selected by model code.
ZRD Series
Series ZRD throttle check valves are designed for maximum flow rates. The throttle check function can be located in port A or B as well as in A + B. Meter-in or meter-out functionality can be selected by model code. A low flow / high resolution version in NFPA 03 / NG6 for sensitive shifting time adjustment of pilot operated directional control valves is available on request.
Sizing Options
FM Series:

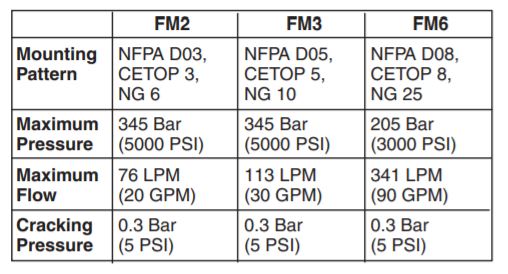

- FM2

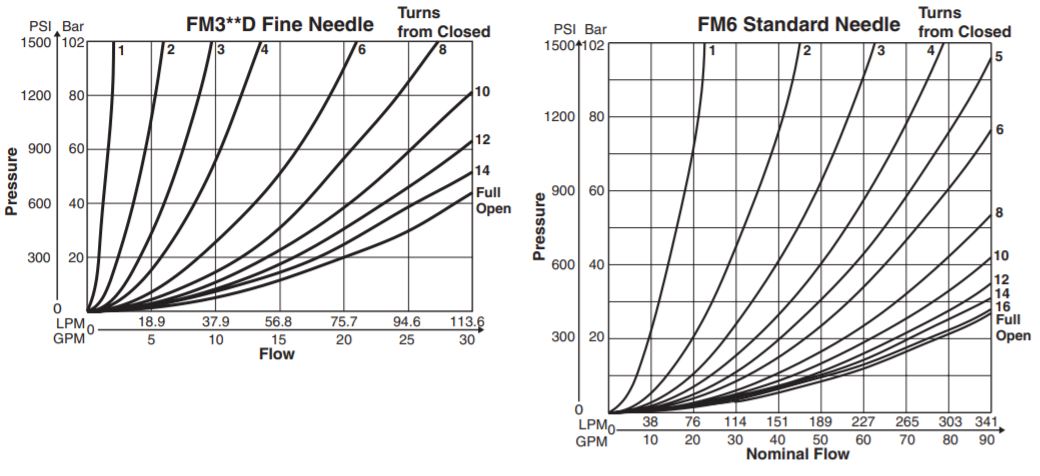

- FM3
- FM6
FD, FC Series:

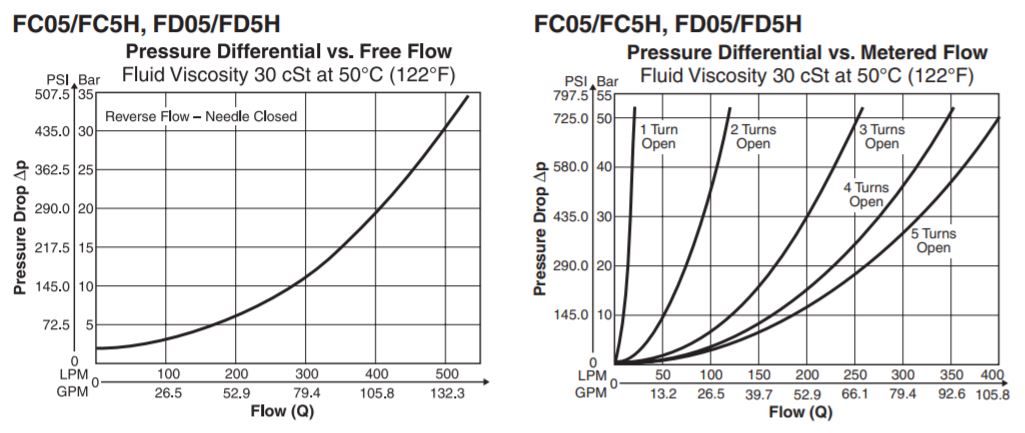

- FC05DD
- FC5HDD

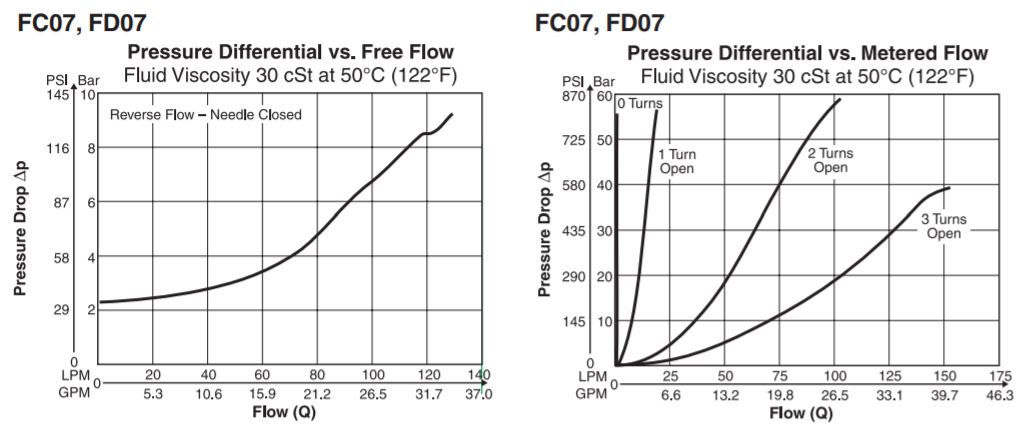

- FC07DD
- FC08DD
- FD05DD
- FD5HDD
- FD07DD
- FD08DD

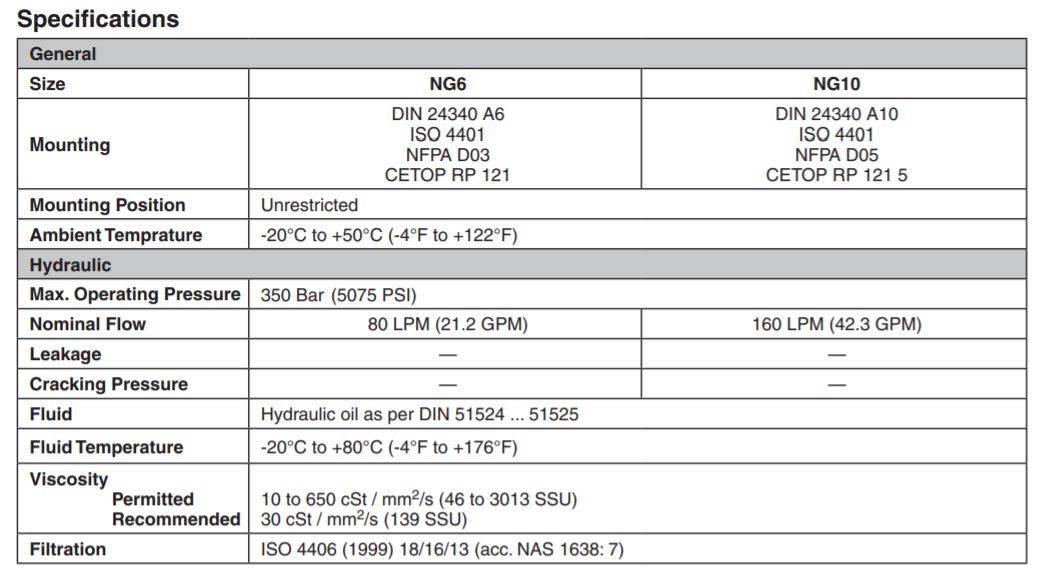

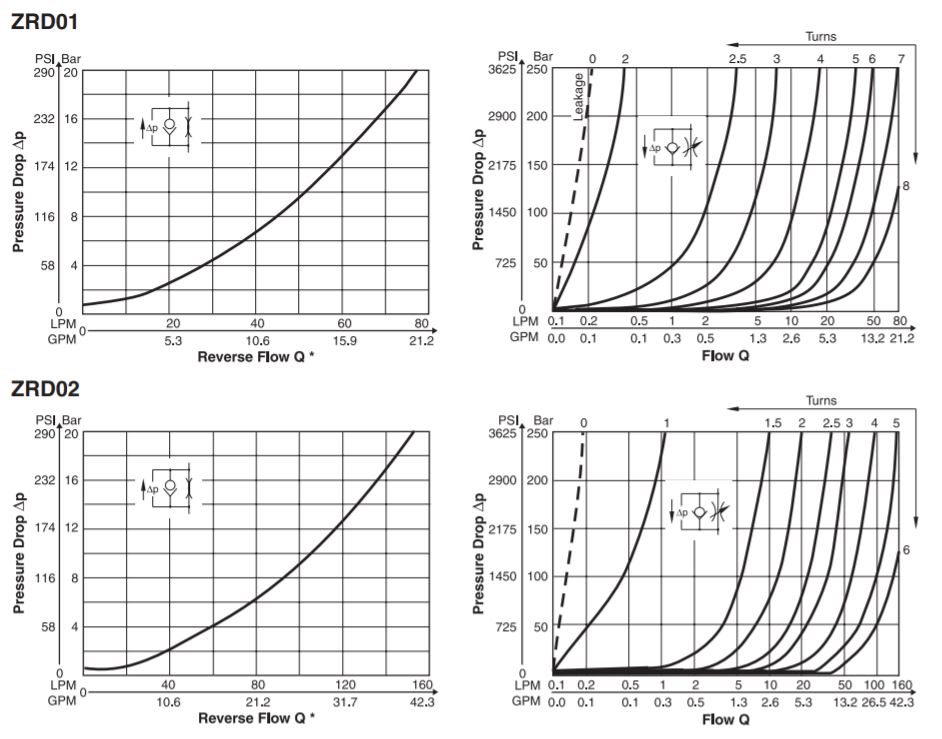

ZRD:
- D03 mounted
- D05 Mounted
Valve Types
Check Valves
Metering / Flow control
Why Choose the FM?
Pressure / Flow Ranges:
About the FM Series
Why Use FD, FC Series
About The FD, FC Series
Why Chose The ZRD Series
About the ZRD Series
