Sandwich Valves - Series CM, CH, ZRV

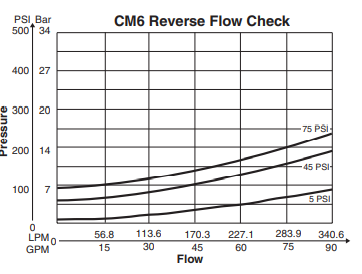

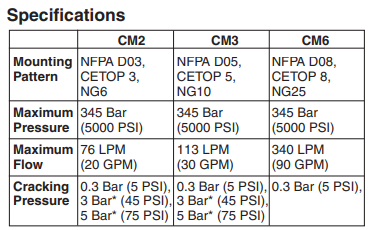

Series CM check valves provide an integral, full flow check valve in the pressure 'P' port, 'A' port, 'B' port, or the tank 'T' port of the directional valve. Reverse flow is blocked. The CM2 and CM3 sizes offer a combination P&T check version.

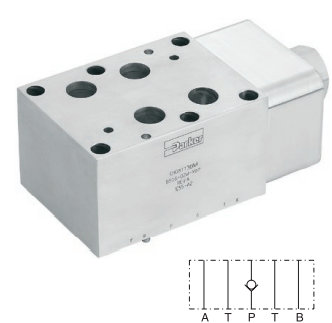

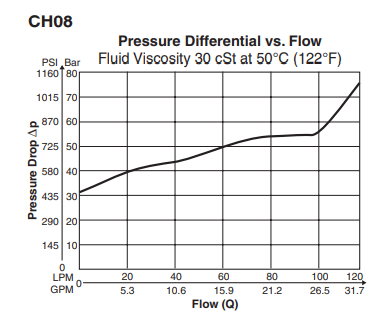

Series CH check valves provide free flow in one direction and blocked flow in the reverse direction. The check can be located in the P port or in the T port.

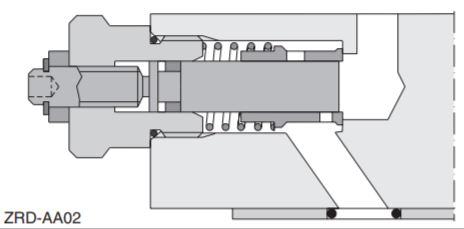

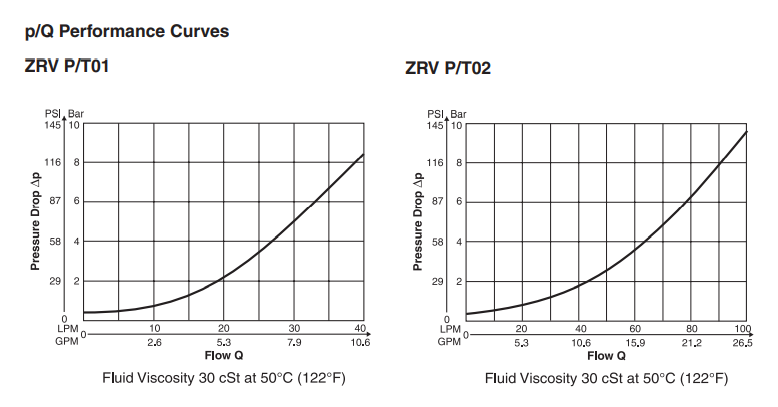

Series ZRV direct operated check valves have a cartridge type insert to provide zero leakage and high life time. The check function can be located in the P-port or in the T-port.

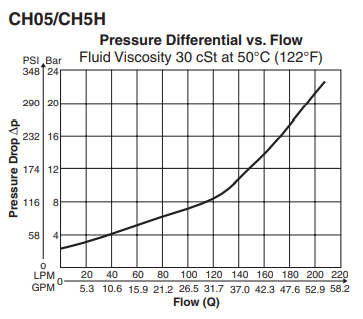

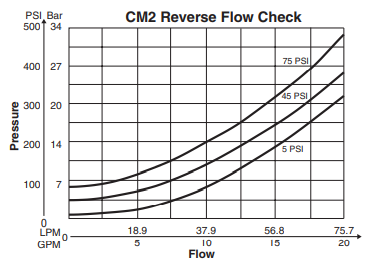

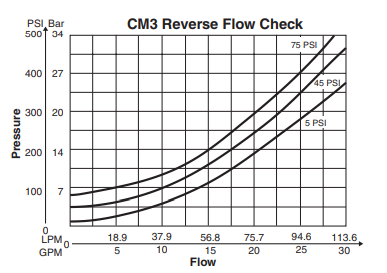

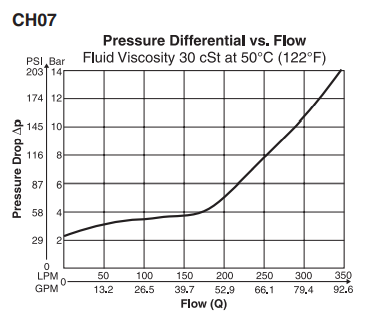

Pressure / Flow Ranges:
