Humidifier
Filtration Product for Fuel Cell EVs
Hydrogen innovation products from Parker, Enabling Engineering Breakthroughs that Lead to a Better Tomorrow
The proton exchange membrane fuel cell (PEMFC) system brings several challenges with it since it requires a high-level cleanliness for both hydrogen and air systems.
The fuel cell cathode is very sensitive to impurities and gasses that can choke and permanently deteriorate the fuel cell stack.

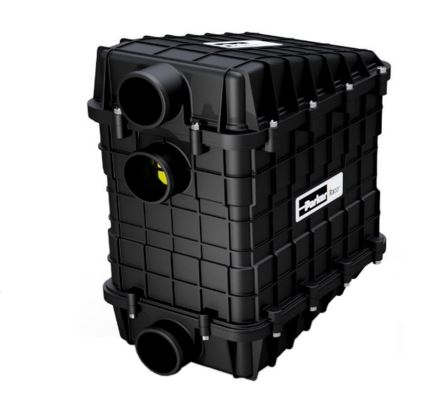

The Parker humidifier will ensure the optimal level of humidity throughout the lifetime of the product.
Features and Benefits:
- Proprietary technology delivers extended durability
- High resistance to chemical and thermal degradation
- Flexible port positioning
- Designed utilizing 25 years' of experience with hollow fibre development
Specifications:
- Flow rate: 10,000 LPM
- Fluid temperature: -40 to 95oC
- Maximum pressure: 3 bar

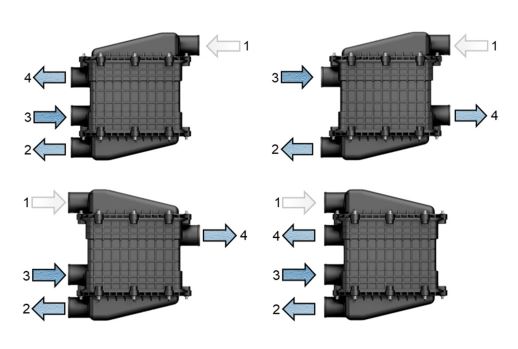

1. Dry Inlet 2. Dry Outlet 3. Wet Inlet 4. Wet Outlet
