H2 Filter
Filtration Product for Fuel Cell EVs
Hydrogen innovation products from Parker, Enabling Engineering Breakthroughs that Lead to a Better Tomorrow
The proton exchange membrane fuel cell (PEMFC) system brings several challenges with it since it requires a high-level cleanliness for both hydrogen and air systems.
The fuel cell cathode is very sensitive to impurities and gasses that can choke and permanently deteriorate the fuel cell stack.

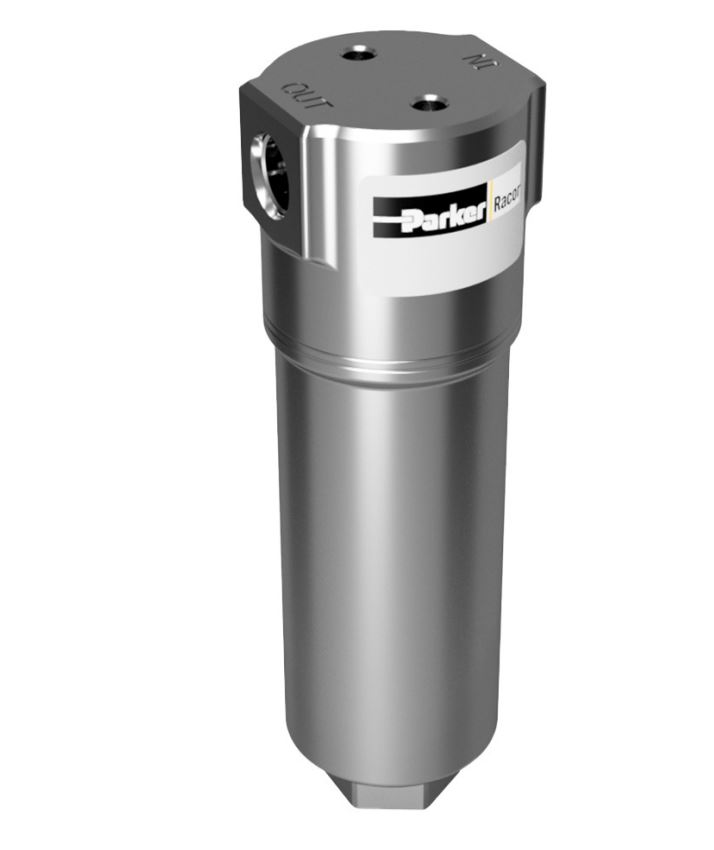

Parker H2 Filters remove particles and coalesce liquids from the H2 stream and can be used as a safety measure to protect the system.
Features and Benefits:
- Coalescing and particle retention filtration
- Wide range of filtration types
- Designed utilizing 30 years' experience in gas filtration
- Design optimized for automotive market
Specifications:
- Filtration efficiency: 99.99% @ 3 microns
- Working pressure: Rated to 55 bar
- Material: Stainless Steel

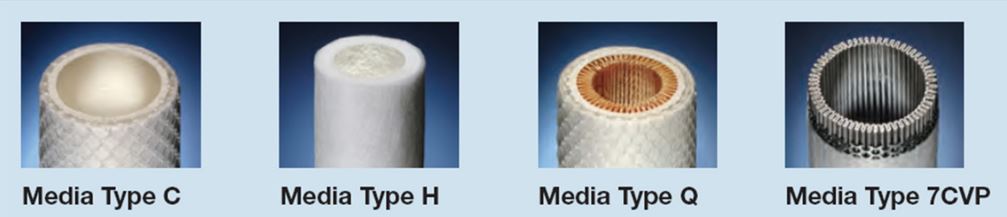

Coalescing Elements
(Removal of liquids and particulates)
