Introducing
CHO-THERM® HV Series
Thermally Conductive Pads with Enhanced Electrical Insulation
Parker Chomerics CHO-THERM HV Series is a family of thermally conductive and electrically insulating pads, with thermal conductivities ranging from 1.1 to 3.3 W/m-K, providing breakdown voltages of up to 20 kV under DC load.
Engineered to provide effective heat transfer from heat generating components (CPUs, GPUs, high power busbars, etc.) to heat dissipating components (cold plates, heat sinks, cooling pipes, vapor chambers, etc.) within electronic devices and systems.
The CHO-THERM HV series offers the ideal combination of high thermal and low outgassing performance while requiring ultra low compression forces during installation and use. With Shore 00 hardnesses ranging from 30 to 35, the HV Series allows for exceptional conformability between uneven mating surfaces with rough surface textures in order to eliminate air gaps.
For enhanced electrical insulation and electrical breakdown resistance, the HV Series features high-performance dielectric layers to provide electrial isolation between high power components utilized in the most demanding automotive and industrial systems.
Available in custom diecut geometries for complex surface areas or large format sheets for high volume conversion, the CHO-THERM HV Series can be provided in the configuration most suited to the demanded assembly process.
Product Features
- 1.1 to 3.3 W/m-K Thermal Conductivity
- Breakdown Voltages up to > 20 kV DC to Electrical Through Resistance
- Ultra-Low Compression Force
- High Tack Surface Reduces Thermal Contact Resistance
- Enhanced Electrical Isolation with Dielectric Layers
- Vibration Dampening
- PSA Options for High-Strength Adhesion
- V-0 Rated UL94 Flammability Performance
- RoHS Compliant
Typical Applications
- Automotive Power Electronics
- Automotive Lighting Assemblies
- Electric Vehicle Charging Stations
- High Voltage Automotive Sensors and Actuators
- Alternative Energy Power Conversion/Inversion Equipment
- Ruggedized Electronics in Heavy Duty Industrial Equipment
- Industrial Motor Controllers
Get a Free Sample of
CHO-THERM HV
CHO-THERM HV1110
- Thermal Conductivity: 1.1 W/m-K
- Breakdown Voltages up to > 20 kV DC to Electrical Through Resistance
- Ultra-Low Compression Force
- High Tack Surface Reduces Thermal Contact Resistance
- Enhanced Electrical Isolation with Dielectric Layers
- Vibration Dampening
- PSA Options for High-Strength Adhesion
- V-0 Rated UL94 Flammability Performance
- RoHS Compliant
CHO-THERM HV1717
- Thermal Conductivity: 1.7 W/m-K
- Breakdown Voltages up to > 20 kV DC to Electrical Through Resistance
- Ultra-Low Compression Force
- High Tack Surface Reduces Thermal Contact Resistance
- Enhanced Electrical Isolation with Dielectric Layers
- Vibration Dampening
- PSA Options for High-Strength Adhesion
- V-0 Rated UL94 Flammability Performance
- RoHS Compliant

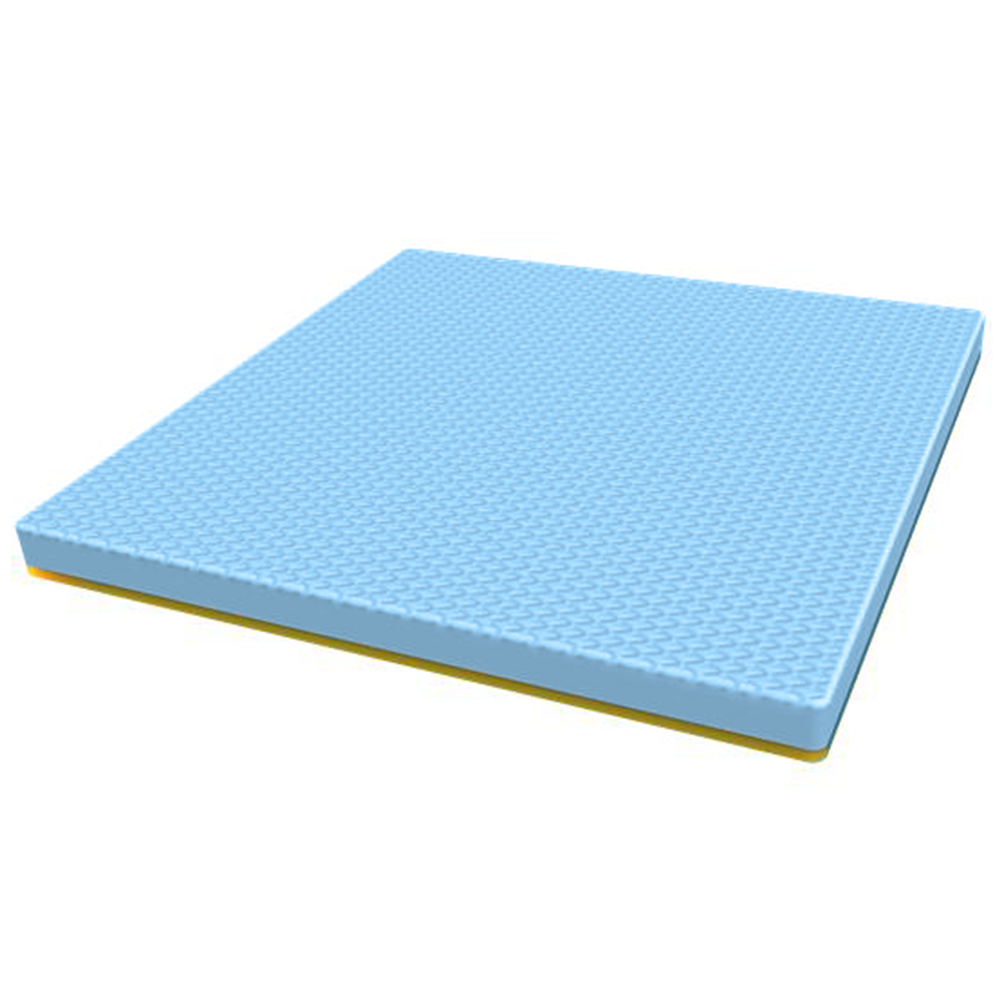

CHO-THERM HV2320
- Thermal Conductivity: 2.3 W/m-K
- Breakdown Voltages up to > 20 kV DC to Electrical Through Resistance
- Ultra-Low Compression Force
- High Tack Surface Reduces Thermal Contact Resistance
- Enhanced Electrical Isolation with Dielectric Layers
- Vibration Dampening
- PSA Options for High-Strength Adhesion
- V-0 Rated UL94 Flammability Performance
- RoHS Compliant

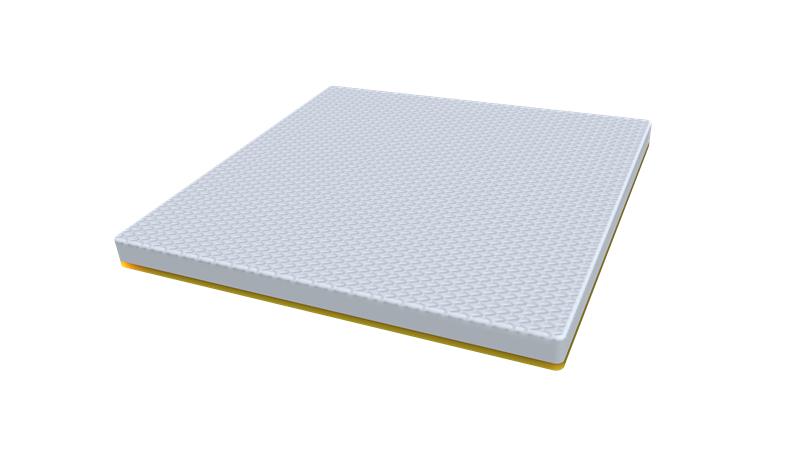

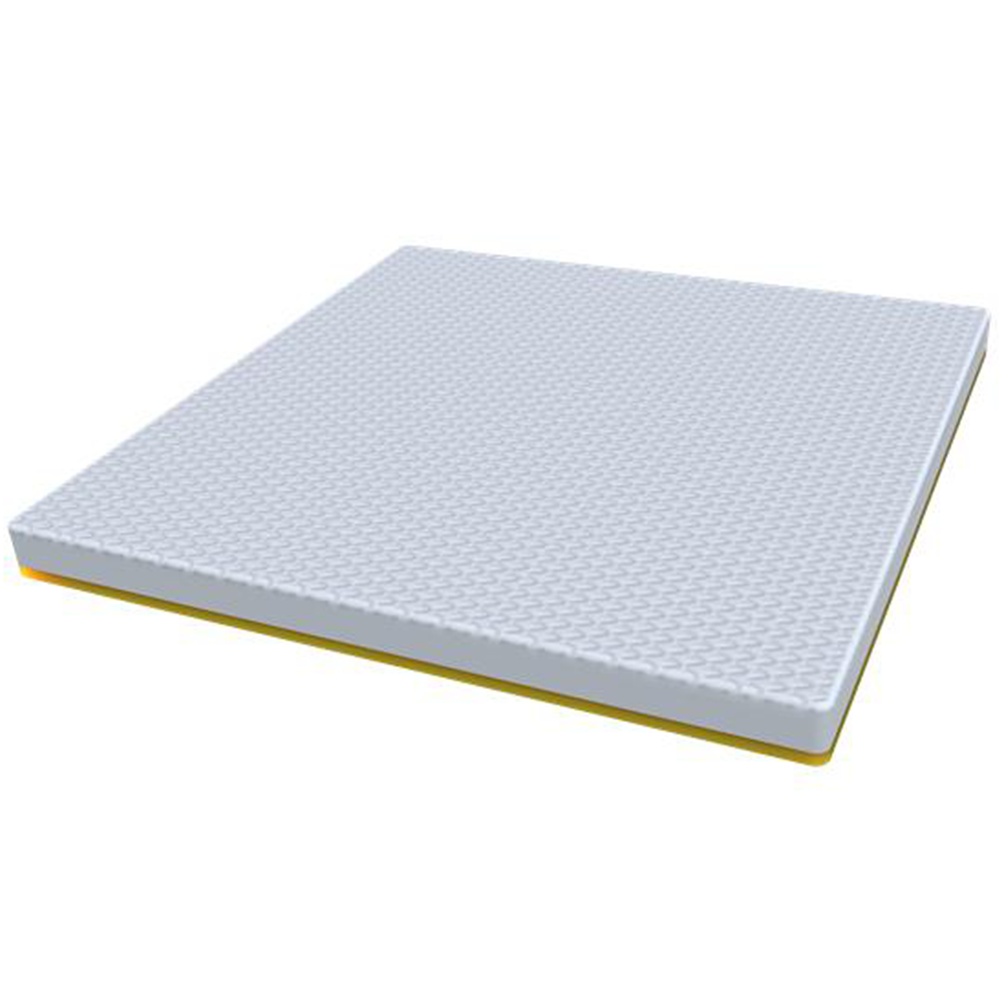

CHO-THERM HV3320
- Thermal Conductivity: 3.3 W/m-K
- Breakdown Voltages up to > 20 kV DC to Electrical Through Resistance
- Ultra-Low Compression Force
- High Tack Surface Reduces Thermal Contact Resistance
- Enhanced Electrical Isolation with Dielectric Layers
- Vibration Dampening
- PSA Options for High-Strength Adhesion
- V-0 Rated UL94 Flammability Performance
- RoHS Compliant
